Analytical Capabilities

• Stereoscopes with zoom

• Analytical equipment integrated into facility network for easy image & data capture, for documentation & transfer

Nikon high resolution optical microscopes
with video micrometers for computer assisted inspection of processed surfaces and orifices (using proprietary in-house software)

Nikon optical comparator
for measuring two-dimensional contours of processed parts; featuring 20, 50, and 100X lenses, contour & surface illumination, and digital scales

Pacific Precision Labs
Non-contact, 3-axis, Vision & laser based measurement system providing micron scale accuracy and sub-micron resolution. System includes the JMAR VideoCMM® and analysis software

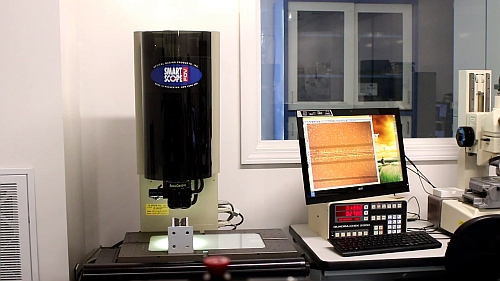

OGP (Optical Gauging Products) Coordinate Measuring Microscope
A complete benchtop system including optics, illumination, staging and software. System features auto-callibrating zoom lens, precision XYZ motion, advanced image processing algorithms and multiple lighting options.



Design Consulting

PhotoMachining's staff of scientists and engineers will assist you in integrating laser-based machining technology into your manufacturing process. We offer design consulting from concept through finished stages.

In addition, we offer courses and seminars throughout the year on the fundamentals of laser processing.
